Traxbean Ankle Tracker Passed the EMC Test – 10

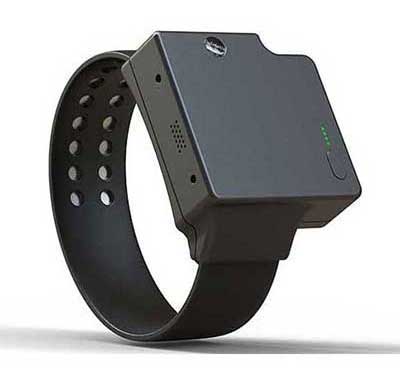

Ankle Tracker
Ankle tracker beacon is an excellent product we can enable the indoor tracking in the law enforcement solutions. To get more information please click the link Contact Us

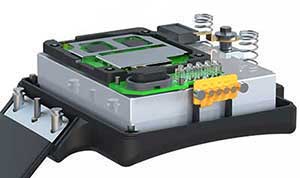

Ankle Tracker Design
We design a tamper proof ankle tracker from PCBA, DFM(Design for manufacturability) key point is safe, Electromagnetic Compatibility is one of the requirements.
Social Media
Voltage Dips and Interruptions
Environmental conditions:
Temperature：15-35 ℃， Humidity：45-75 %RH
Reference documents:
IEC61000-4-11:1999 Electromagnetic compatibility(EMC)-Part 4-11:Testing and measurement techniques-Voltage dips,short interruptions and voltage variations immunity tests

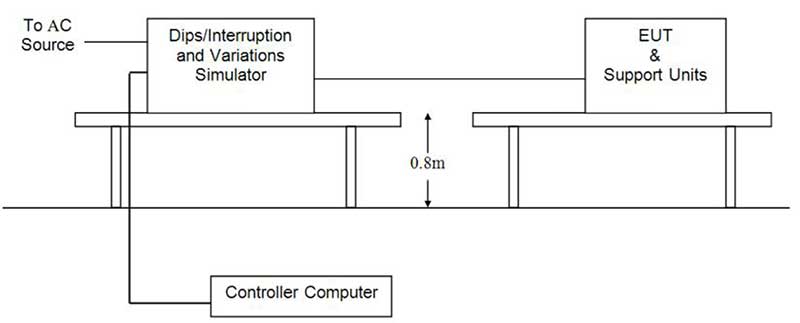

Test arrangement:
Sample state:
Sample is in good condition before test
Test conditions:
The test sample is in normal state
70% of VT(Supply Voltage) for 10ms;
40% of VT(Supply Voltage) for 100ms;
10% of VT(Supply Voltage) for 500ms
General performance criteria:
Performance criteria A for immunity tests with phenomena of a continuous nature;
Performance criteria B for immunity tests with phenomena of a transient nature;
Performance criteria C for immunity tests with power interruptions exceeding a certain time.
Test acceptance requirements:
Criteria B.
Test Result:
Criteria A.
Test conclusion:
Passed

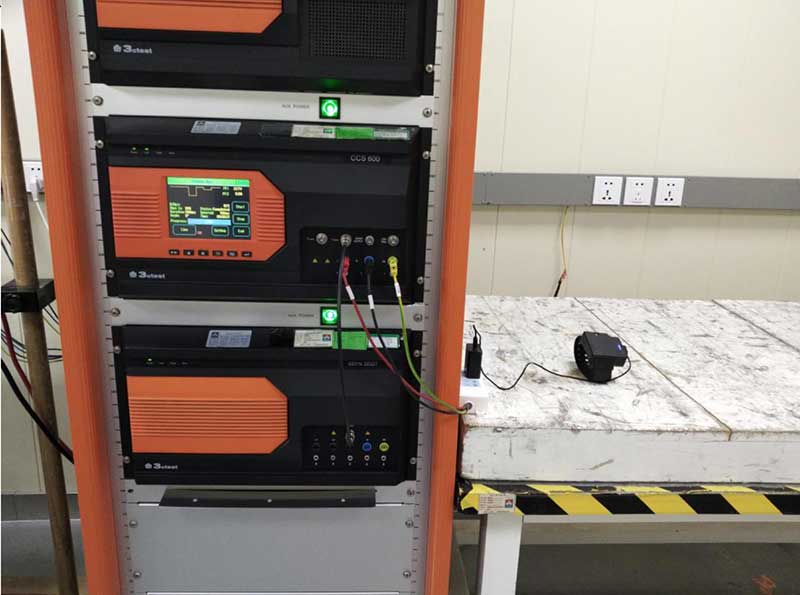

Test Photo
The ankle tracker is used for prisoner/offender/criminal tracking in the community correction program.
