Ankle Tracker Design

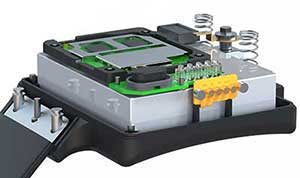

We design a tamper proof ankle tracker from PCBA, DFM(Design for manufacturability) key point is safe, Electromagnetic Compatibility is one of the requirements.

ankle tracker,prisoner tracker,smart watch,gps tracker,Software Architecture

Social Media

Radiated Emission(>1GHz)

Environmental conditions:

Temperature:15-35 ℃, Humidity:45-75 %RH



Reference documents:

CISPR 22:2006 Information technology equipment-Radio disturbance characteristics-Limits and methods of measurement

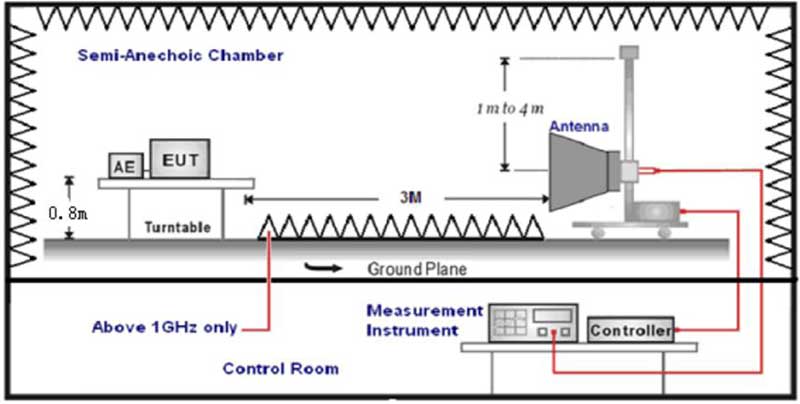

Test arrangement:



ankle tracker,prisoner tracker,smart watch,gps tracker,EMC



Sample state:

Sample is in good condition before test



Test conditions:

The test sample is in normal state

Frequency (30MHz ~ 1000MHz).



Test acceptance requirements:

Class B.



Test Result:

Class B.



Test conclusion:

Passed



Please refer to the below test data:

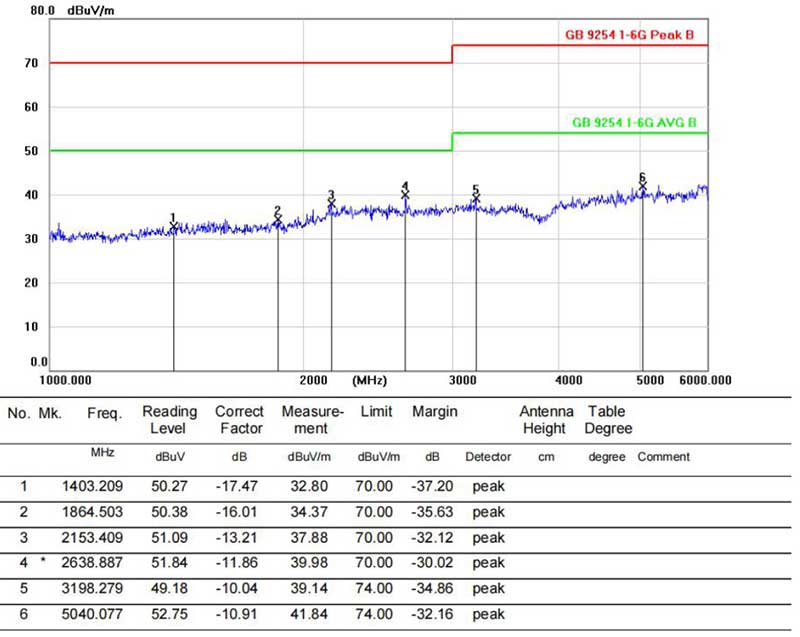

Polarization: Horizontal

ankle tracker,prisoner tracker,smart watch,gps tracker,EMC

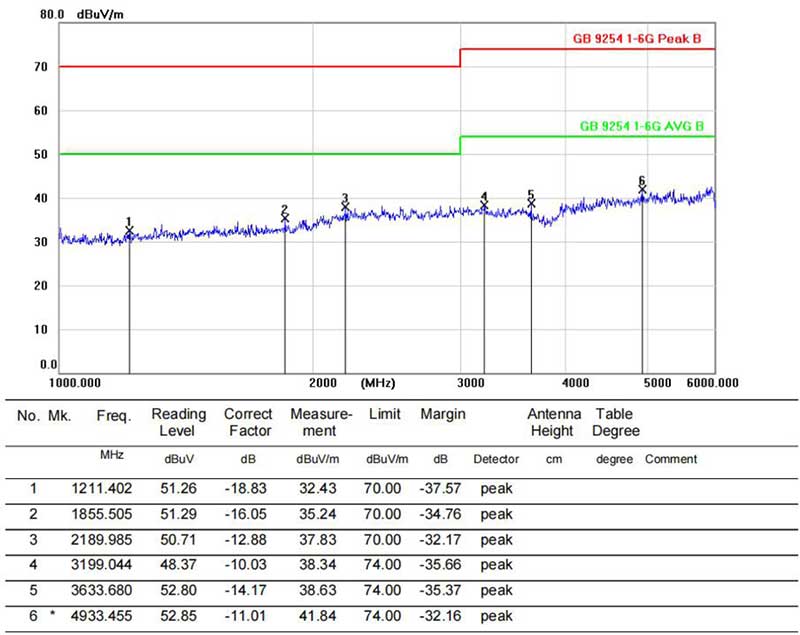

Polarization: Vertical

ankle tracker,prisoner tracker,smart watch,gps tracker,EMC

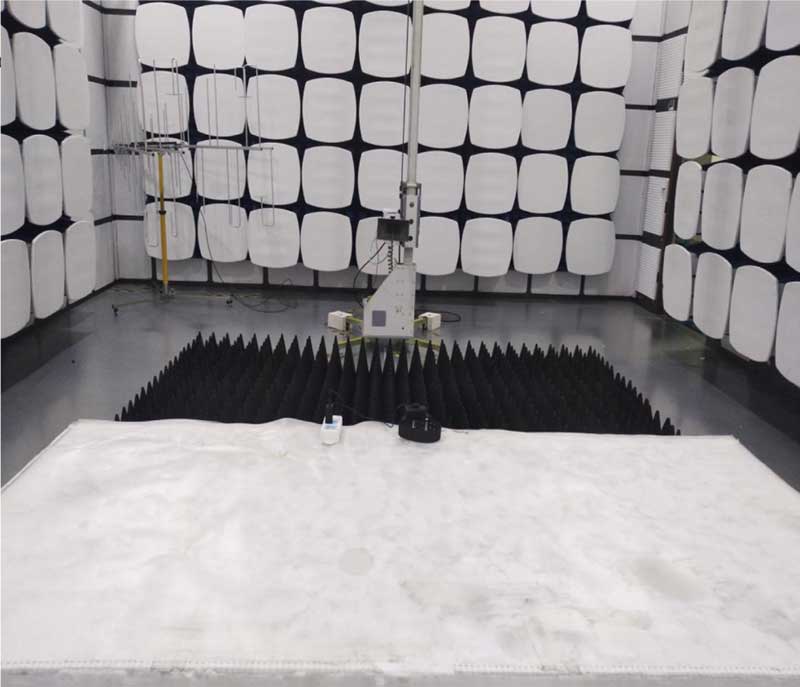

Test Photo

ankle tracker,prisoner tracker,smart watch,gps tracker,EMC

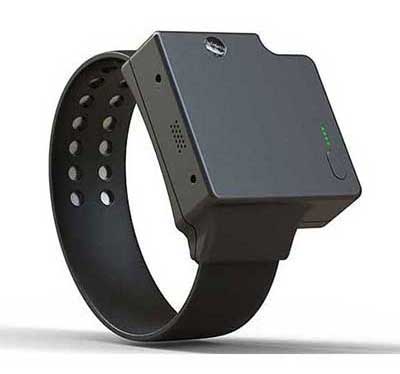

The ankle tracker is used for prisoner/offender/criminal tracking in the community correction program.





More test result and process record are coming.
