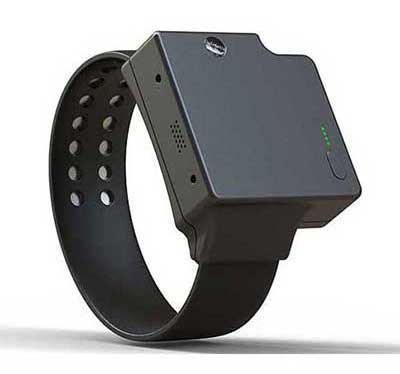

Ankle Tracker Design

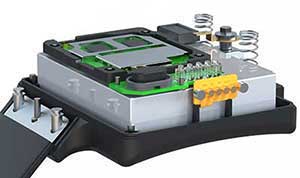

We design a tamper proof ankle tracker from PCBA, DFM(Design for manufacturability) key point is safe, Electromagnetic Compatibility is one of the requirements.
Social Media
Electrostatic Discharge
Environmental conditions:
Temperature：15-35 ℃， Humidity：45-75 %RH
Reference documents:
IEC61000-4-2:2001 Testing and measurement techniques-Electrostatic discharge immunity test.

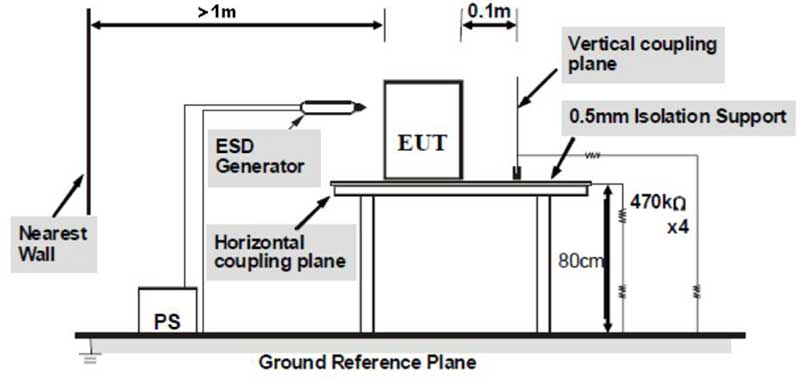

Test arrangement:
Sample state:
Sample is in good condition before test
Test conditions:
The test sample is in normal state
Contact discharge: ±2kV、±4kV.
Air discharge: ±2kV、±4kV、±8kV
General performance criteria:
Performance criteria A for immunity tests with phenomena of a continuous nature;
Performance criteria B for immunity tests with phenomena of a transient nature;
Performance criteria C for immunity tests with power interruptions exceeding a certain time.
Test acceptance requirements:
Criteria B.
Test Result:
Criteria B.
Test conclusion:
Passed
Contact Discharge:
The ESD generator is held perpendicular to the surface to which the discharge is applied and the tip of
the discharge electrode touch the surface of EUT. Then turn the discharge switch. The generator is then
re-triggered for a new single discharge and repeated at least 10 times for each pre-selected test point. This procedure shall be repeated until all the air discharge completed.
Air Discharge:
Air discharge is used where contact discharge can’t be applied. The round discharge tip of the discharge electrode shall be approached as fast as possible to touch the EUT. After each discharge, the discharge electrode shall be removed from the EUT. The generator is then re-triggered for a new single discharge and repeated at least 10 times for each pre-selected test point. This procedure shall be repeated until all the air discharge completed.

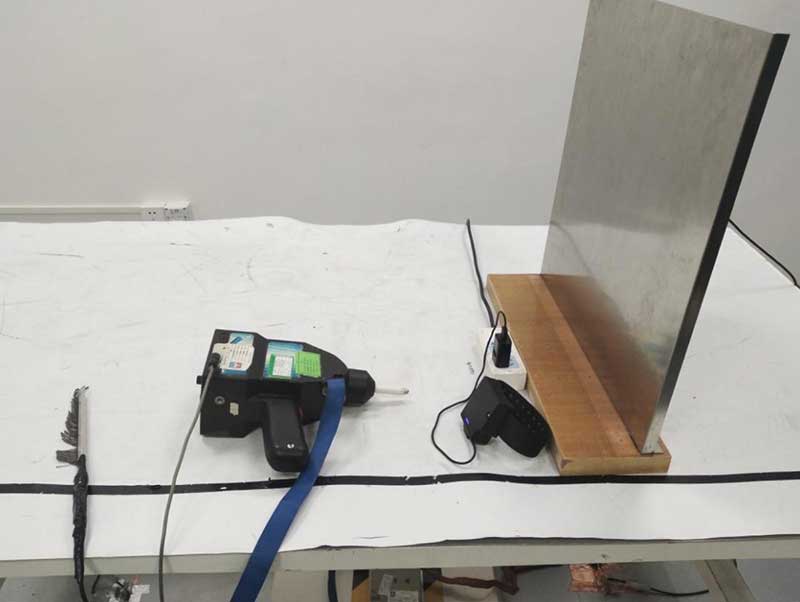

Test Photo
The ankle tracker is used for prisoner/offender/criminal tracking in the community correction program.
